Heating and Hot Water Recirculating System
Heating and Hot Water Recirculating System
Heating and Hot Water Recirculating System
Heating and Hot Water Recirculating System

Heating and Hot Water Recirculating System

We offer two different materials for the water jacket,  carbon steel water jacket and stainless steel water jacket.

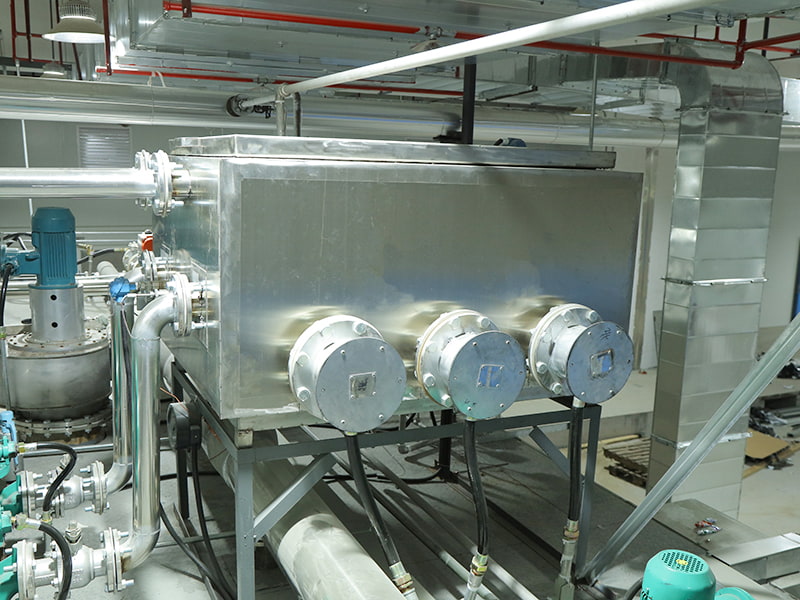

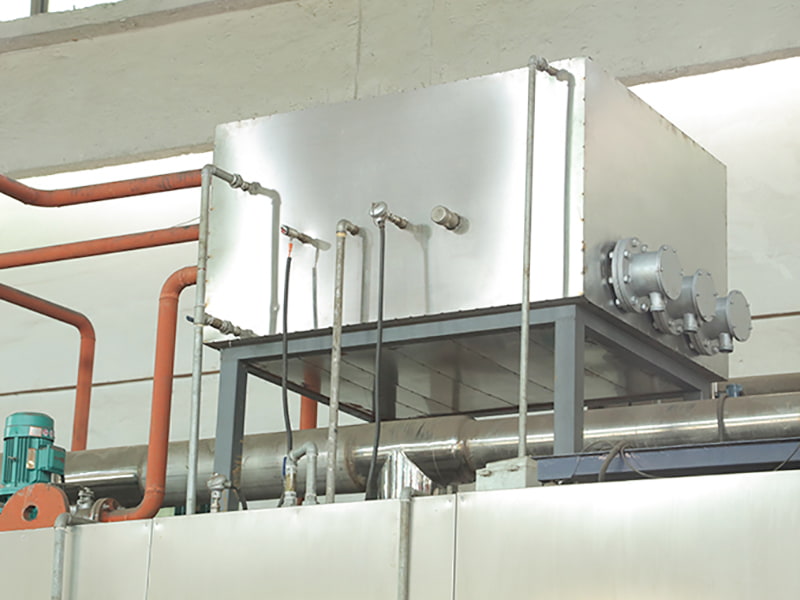

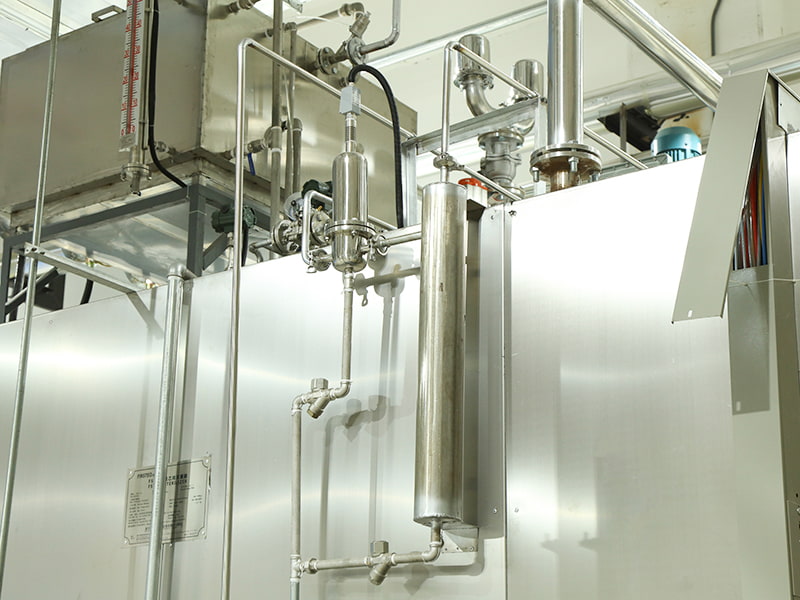

We use a water tank for the heating system with the heating tube. and also use a magnetic level gauge to monitor the water level. Have automatic water filling function.

The heating cycle pump can send the hot water in the heating water tank to heat the sterilizer cycling in the water jacket.

click here for the details.

Share

Product Details:

This product is a high-efficiency heating and hot water circulation system specially designed for ethylene oxide sterilization workshops. It uses advanced heat conduction technology to ensure uniform and stable temperature in the workshop and meet the strict requirements for ambient temperature in sterilization operations. The system has the characteristics of high efficiency, energy saving, safety, reliability and easy operation. It can operate stably for a long time and provide a stable and reliable heat source guarantee for ethylene oxide sterilization. At the same time, the hot water circulation system uses a circulation pump and an intelligent temperature control device to achieve rapid circulation of hot water and precise temperature control, ensuring that the water temperature during the sterilization process is stable and meets process requirements. This product is suitable for all types of ethylene oxide sterilization workshops and is an ideal choice to improve sterilization efficiency and ensure product quality.
FIRSTEO Machinery
Equipment Co., Ltd.

FIRSTEO Machinery Equipment Co., Ltd. is one of the well-known China Heating and Hot Water Recirculating System manufacturers and Heating and Hot Water Recirculating System suppliers in China. We have our own technology development, design, production, sales and service department. Our products include the overall facilities of the ethylene oxide sterilization workshop, the pretreatment room, the ethylene oxide sterilizer, the analytical room and the ethylene oxide waste gas treat equipment. Our company has established in a quality management system which accordance with ISO9001:2008 and ENISO13485:2003/AC2009. Our company is engaged in: pretreatment - sterilizer - strong analytical --EO waste gas treatment, the whole process equipment manufacturing factory to provide custom Heating and Hot Water Recirculating System and wholesale Heating and Hot Water Recirculating System. We are a famous China Heating and Hot Water Recirculating System suppliers and Heating and Hot Water Recirculating System factory of ethylene oxide sterilization that uses hot air heating system in China, and had applied the "utility model patent certificate" (energy saving, water-saving, no corrosion, fast heating speed; which can extend the life of the equipment for 10-15 years). Our own FSTEO-WQ series of ethylene oxide waste air absorption and treatment equipment was developed with the domestic universities. It allows the low temperature reaction process and reselected the catalyst reacting under low temperature. The removal rate of the waste gas was more than 99.9% after the purification of the waste gas. The emission residual gas is far below the national standard requirements. We have also developed an automatic control system which can join the operation between the waste gas treat process and the sterilizing cabinet. Our technical engineers have decades of experience in the industry. So we can provide professional man to install, test, training or repair machine for customer. We have a large number of high-quality customers: Jiangsu Fresenius Medical Care (Germany), Nanchang Kelinnike Medical Appliance (Germany), Shenzhen DooJung Group (Korea), Nanjing micro-tech, Winner Medical and other well-known Pharmaceutical equipment or other related products enterprises in China. We can also provide you with the best equipment and services.

Solutions
of interest
Medical Supplies
Medical Supplies
Covid-19
Covid-19
Medical Apparatus
Medical Apparatus
Cotton Products
Cotton Products
Other Things
Other Things
Products
of interest
Industrial Ethylene Oxide Sterilizers
Industrial Ethylene Oxide Sterilizers
Degasser or Aeration chamber
Degasser or Aeration chamber
Preheating chamber
Preheating chamber
Waste gas treatment or Scrubber
Waste gas treatment or Scrubber
Ethylene Oxide Sterilizers
Ethylene Oxide Sterilizers
EO gas alarm controller
EO gas alarm controller
Nitrogen Maker
Nitrogen Maker
Gas Chromatograph
Gas Chromatograph
Customer Evaluation
l am very happy with everything and I want to congratulate you for an outstanding worker
l am very happy with everything and I want to congratulate you for an outstanding worker
l am very happy with everything and I want to congratulate you for an outstanding worker
l am very happy with everything and I want to congratulate you for an outstanding worker
you deserve it as you are excellent at your job and help me timeously with all my problems.
Leave a Message
If you have any questions, please leave us a message and we will reply to you as soon as possible
  • Name *
  • Email *
  • Country *
  • Telephone
  • Message *
    • Honor
    HO
    Business license
    HO
    Patent certificate
    HO
    Production License

    FIRSTEO
    Machinery News

    2024 12 19
    How to understand the precise control and multiple advantages of EO gasification system in ethylene oxide sterilization?
    2024 12 12
    How does the humidification system of the ethylene oxide sterilization workshop accurately control humidity to optimize the sterilization effect?
    2024 12 05
    How to optimize the ethylene oxide sterilization process through an efficient hot water circulation system?

    Industry knowledge

    What are the key components of a heating and hot water circulation system?

    Boiler or Water Heater: This is the primary source of heat or hot water. It can be fueled by natural gas, oil, electricity, or other energy sources.
    Circulation Pump: The circulation pump is responsible for moving the hot water or heating fluid through the system, ensuring a continuous flow and distribution of heat.
    Radiators, Baseboard Heaters, or Underfloor Heating: These are the heat emitters that release the heat into the surrounding space. Radiators and baseboard heaters use convection to warm the air, while underfloor heating relies on radiant heat transfer.
    Pipes and Piping Network: Pipes distribute hot water or heating fluid from the boiler to the heat emitters and back. They form a network of interconnected pipes, often hidden within walls, floors, or ceilings.
    Expansion Tank: The expansion tank helps accommodate the expansion and contraction of the heating fluid as it heats and cools. It helps maintain a stable pressure within the system.
    Controls and Thermostats: These devices regulate the operation of the heating and hot water circulation system. They enable users to set desired temperatures, control the circulation pump, and manage the overall system performance.
    Valves and Fittings: Valves control the flow of hot water within the system and allow for isolation or redirection of flow. Fittings ensure proper connections between pipes and components.
    Insulation: Insulation is essential to reduce heat loss in the system. It is commonly applied to pipes, boilers, and storage tanks to improve energy efficiency.
    Expansion Joints: Expansion joints accommodate the expansion and contraction of pipes due to temperature changes, preventing damage or leaks.
    Heat Exchanger (in some systems): In systems where the heating source is separate from the circulated fluid, a heat exchanger transfers the heat from the source to the fluid before it is distributed.

    How does a heating and hot water circulation system work?

    Heat Generation: The system's heat source, which can be a boiler or water heater, produces hot water or heating fluid. The heat source is fueled by natural gas, oil, electricity, or other energy sources, depending on the system design.
    Circulation: A circulation pump is activated to move the hot water or heating fluid from the heat source through a network of pipes. The pump's role is to ensure a continuous flow and proper distribution of heat throughout the system.
    Distribution Network: The network of pipes distributes the hot water or heating fluid from the heat source to the various heat emitters located in different areas of the building. These pipes are often concealed within walls, floors, or ceilings for aesthetic purposes.
    Heat Emitters: The hot water or heating fluid is released into the heat emitters, which can include radiators, baseboard heaters, or underfloor heating systems. The heat emitters transfer the heat to the surrounding air or surfaces, providing space heating.
    Control and Regulation: The system includes controls and thermostats that allow users to set desired temperatures for different zones or areas within the building. The controls monitor the temperature and activate or deactivate the circulation pump accordingly to maintain the desired comfort levels.
    Hot Water Supply: In addition to space heating, the system may also provide hot water for domestic use. A separate water storage tank or heat exchanger can be integrated into the system to heat the water, which is then supplied to taps, showers, and other fixtures.
    Circulation Loop: The hot water or heating fluid, after releasing its heat in the heat emitters, returns to the heat source through a separate pipe network, forming a closed-loop circulation system. This continuous circulation ensures that the heat source maintains a steady supply of hot water or heating fluid.
    Safety and Efficiency Features: Heating and hot water circulation systems often incorporate safety features such as pressure relief valves, temperature sensors, and automatic shut-off mechanisms to protect against overheating or system failures. Energy-efficient components, insulation, and controls are also employed to optimize system performance and minimize heat loss.
