What are the main components of a wet scrubber system?
A wet scrubber system, also known as a wet scrubber or wet air scrubber, is a pollution control device used to remove pollutants from industrial exhaust gases or flue gases. It employs a liquid, typically water, to trap and neutralize contaminants. The main components of a wet scrubber system include:

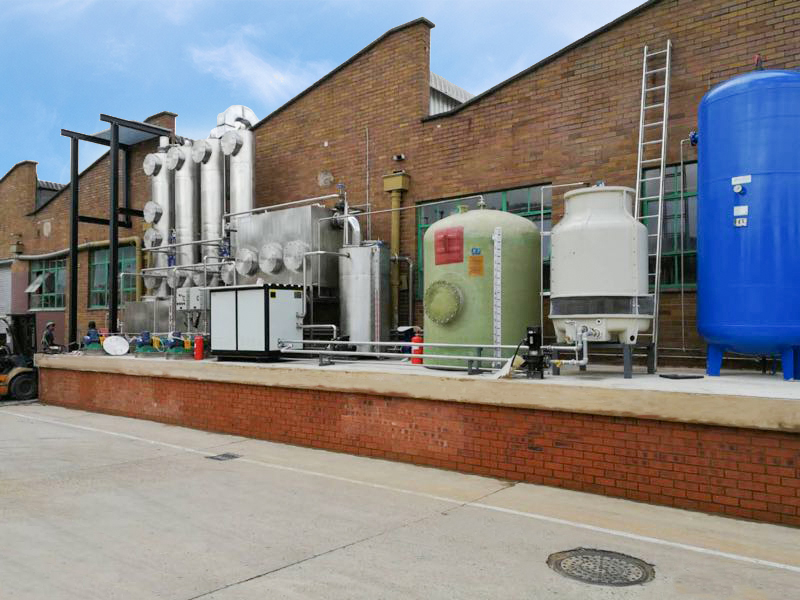

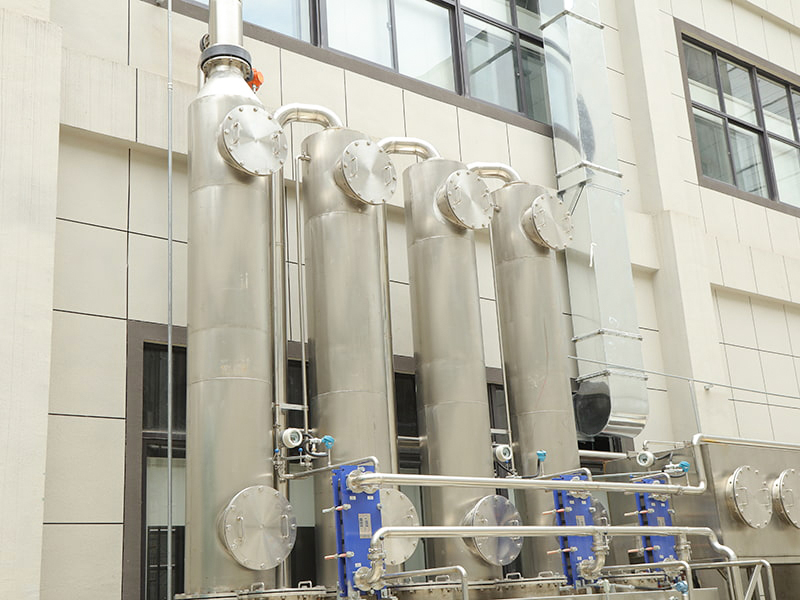

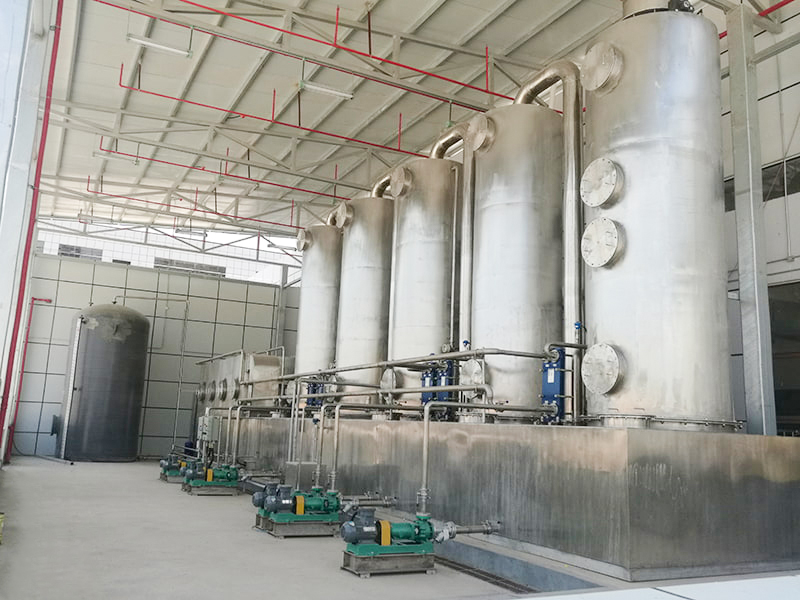

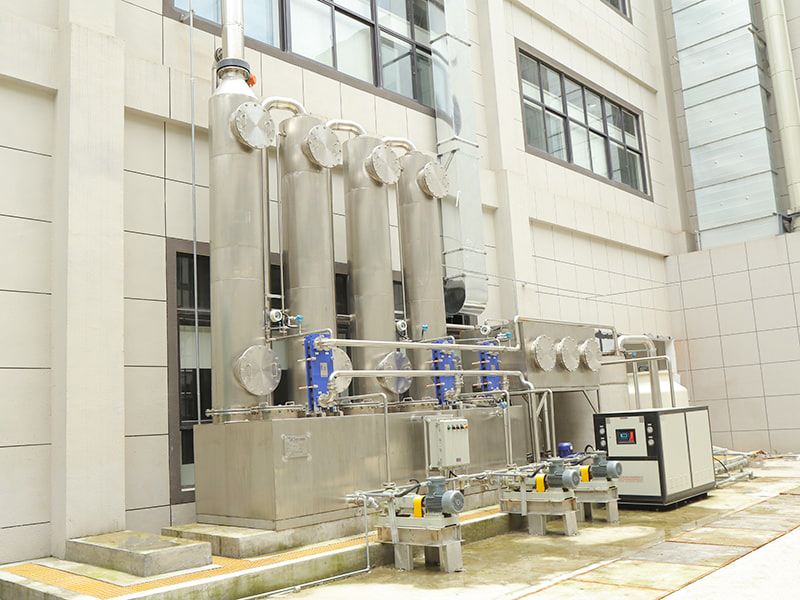

Scrubber Vessel: The scrubber vessel is a large chamber or tower where the gas and liquid come into contact. It is designed to provide sufficient contact time between the gas and liquid phases to facilitate pollutant absorption and reaction. The vessel is typically made of corrosion-resistant materials, such as fiberglass-reinforced plastic (FRP) or stainless steel, to withstand the corrosive nature of the scrubbing process.
Inlet Ductwork: The inlet ductwork connects the emission source to the scrubber vessel. It transports the exhaust gases or flue gases from the industrial process into the scrubber system for treatment. The ductwork may include dampers or control valves to regulate the gas flow and ensure proper operation of the scrubber.
Scrubbing Liquid Introduction System: The scrubbing liquid introduction system is responsible for introducing the liquid, usually water, into the scrubber vessel. It includes spray nozzles, distribution pipes, or other mechanisms to evenly distribute the liquid across the gas flow. The liquid is typically sprayed as fine droplets to maximize the contact area with the gas, enhancing pollutant absorption.
Venturi or Absorption Section: The venturi or absorption section is a key component of the wet scrubber system. It consists of a converging section followed by a throat section. As the gas passes through the venturi, the high-velocity gas stream creates a pressure drop, promoting intimate contact between the gas and liquid phases. This section enhances the mass transfer and absorption of pollutants into the liquid.
Liquid-Gas Separation Section: After the gas and liquid have interacted in the scrubber vessel, the liquid-gas separation section separates the clean gas from the liquid droplets or mist. This section typically includes mist eliminators, demisters, or cyclonic separators to remove the entrained liquid droplets from the gas stream. The separated liquid is collected and recirculated back to the scrubber vessel for reuse.
Exhaust Stack: The exhaust stack is the outlet point for the treated gas stream after passing through the wet scrubber system. It ensures the safe release of the cleaned gas into the atmosphere, adhering to regulatory standards and guidelines. The stack may incorporate additional features, such as dampers or monitoring equipment, for control and compliance purposes.

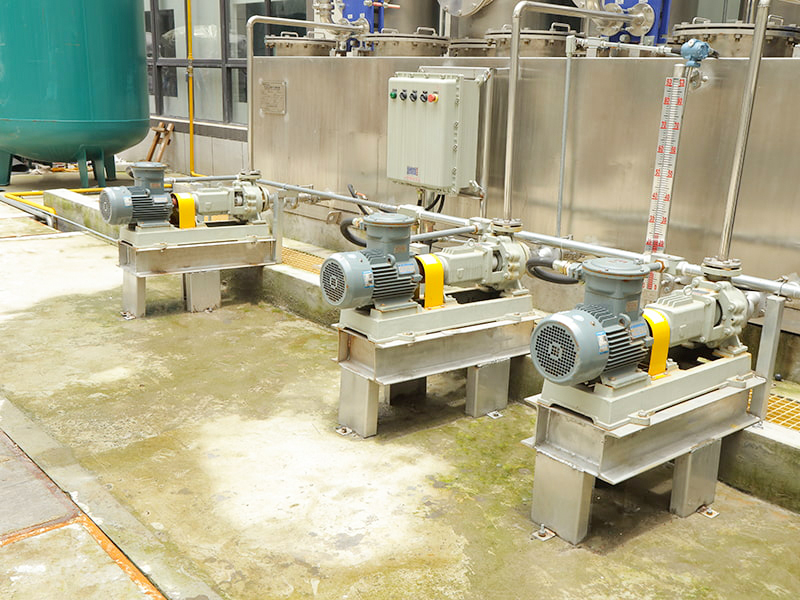

Recirculation and Treatment System: In some wet scrubber systems, a recirculation and treatment system is employed to maintain the desired concentration of pollutants in the scrubbing liquid. This system typically includes pumps, tanks, and chemical dosing equipment. Chemical additives, such as pH adjusters or reactants, may be added to the liquid to enhance pollutant removal or neutralization.

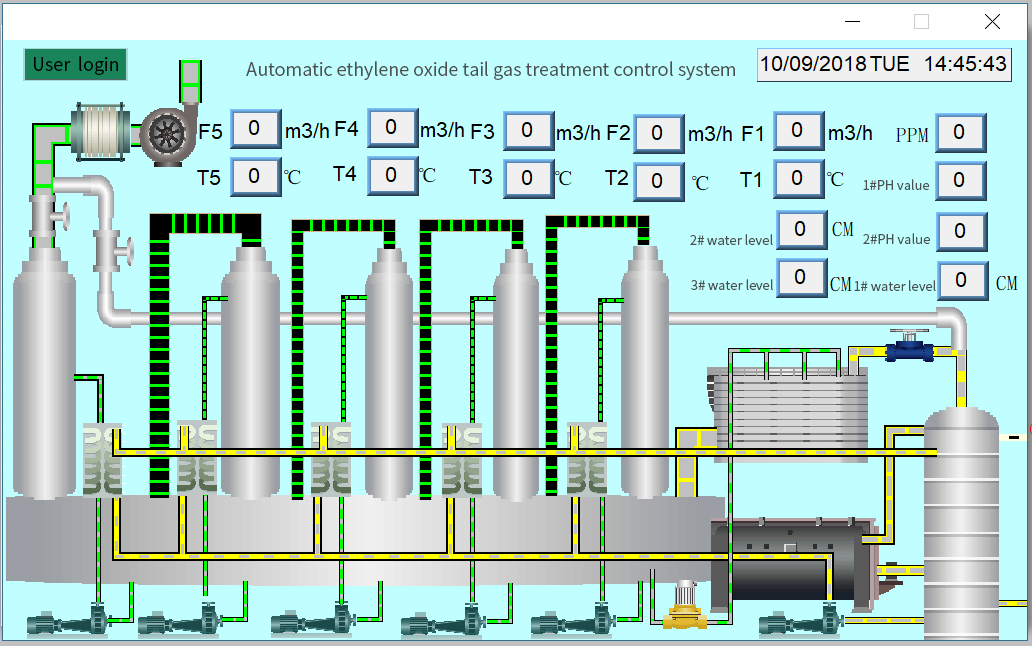

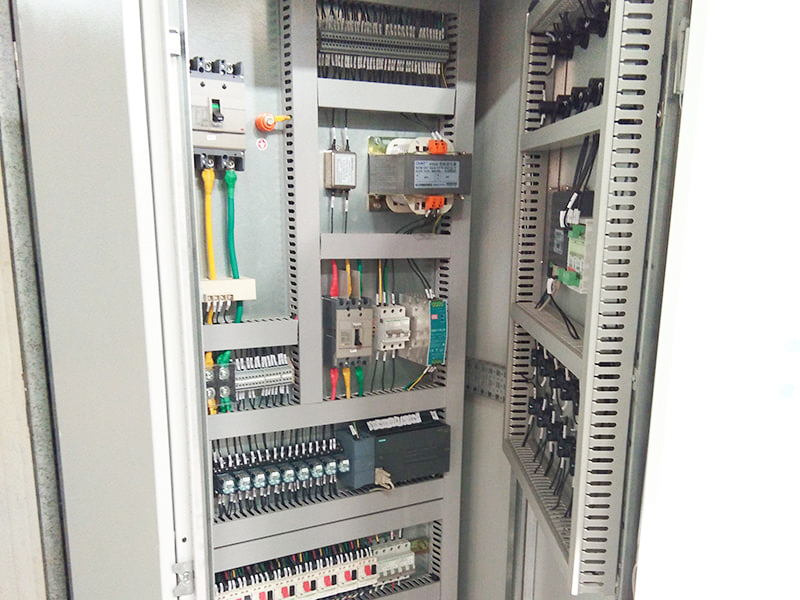

Control and Monitoring Instruments: To ensure efficient and effective operation, wet scrubber systems are equipped with control and monitoring instruments. These instruments include pressure sensors, flow meters, pH meters, temperature sensors, and gas analyzers. They provide real-time data on system performance, gas flow rates, liquid pH levels, and pollutant concentrations, allowing for adjustments and optimization of the scrubber operation.
How does a wet scrubber remove pollutants from industrial exhaust gases?
A wet scrubber is an air pollution control device that effectively removes pollutants from industrial exhaust gases. It achieves this through a process called absorption, wherein the pollutants are transferred from the gas phase to a liquid medium, typically water. The main mechanisms involved in pollutant removal in a wet scrubber system are:
Contact between Gas and Liquid: The first step in pollutant removal is ensuring intimate contact between the gas containing pollutants and the liquid medium. The gas stream is directed into the scrubber vessel, where it comes into contact with a finely dispersed liquid, usually water. The liquid is introduced into the scrubber through spray nozzles, distribution pipes, or other means to create a large interfacial area for gas-liquid interaction.
Absorption: Once in contact, the pollutants present in the gas stream dissolve or react with the liquid. This absorption process is facilitated by several mechanisms:
a. Mass Transfer: The pollutant molecules diffuse from the gas phase into the liquid phase. The absorption rate depends on factors such as the pollutant's solubility in the liquid, its concentration gradient, and the interfacial area available for mass transfer.
b. Chemical Reaction: Certain pollutants can undergo chemical reactions with the scrubbing liquid. For example, acid gases like sulfur dioxide (SO2) can react with water to form sulfurous acid (H2SO3). These chemical reactions enhance pollutant removal and may result in the formation of less harmful or more easily removable byproducts.
c. Physical Adsorption: Some pollutants, particularly particulate matter, can be physically trapped or adsorbed onto the liquid droplets or surfaces in the scrubber vessel. This occurs when the pollutant particles adhere to the liquid through intermolecular forces, effectively removing them from the gas stream.
Mass Transfer and Reaction Efficiency: The efficiency of pollutant removal depends on various factors, including:
a. Residence Time: The longer the gas and liquid are in contact, the greater the opportunity for pollutant absorption. Therefore, the design of the wet scrubber system ensures an adequate residence time for efficient pollutant removal.
b. Liquid-to-Gas Ratio: The ratio of liquid flow rate to gas flow rate, also known as the L/G ratio, affects the absorption efficiency. A higher L/G ratio provides more liquid surface area for pollutant absorption, increasing the likelihood of removal.
c. pH and Chemical Additives: The pH of the scrubbing liquid can influence pollutant removal. Adjusting the pH by adding alkaline or acidic compounds can optimize the absorption of specific pollutants. Chemical additives, such as oxidizing agents or sorbents, can also enhance pollutant removal by facilitating reactions or increasing adsorption capacity.
Liquid-Gas Separation: After pollutant absorption, the gas stream undergoes separation from the liquid. This separation is typically achieved through mist eliminators, demisters, or cyclonic separators located at the top of the scrubber vessel. These devices remove liquid droplets or mist entrained in the gas, allowing for clean gas to exit the system.
Disposal or Treatment of Captured Pollutants: The captured pollutants in the liquid phase, often referred to as the scrubber blowdown or scrubber liquor, need proper disposal or treatment. Depending on the nature of the pollutants, the blowdown may undergo further treatment, such as chemical neutralization or filtration, before being discharged or recycled within the system.
